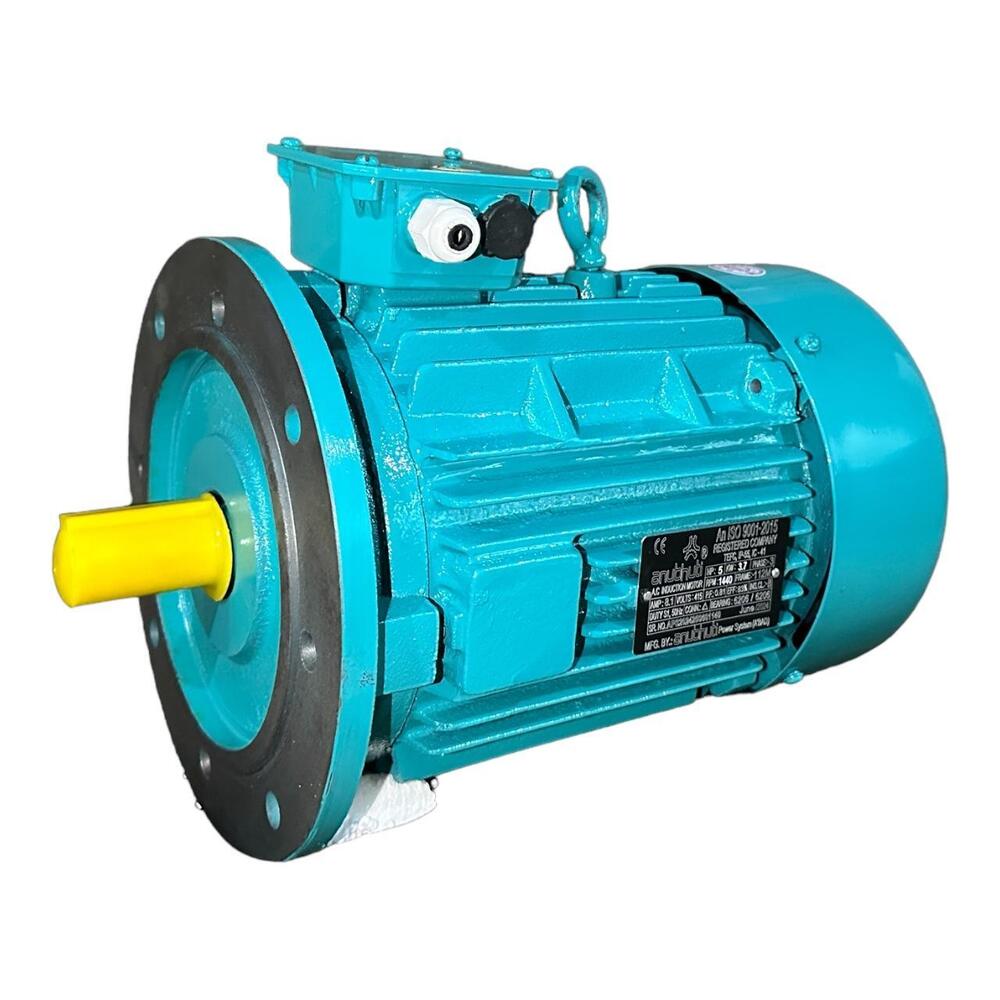

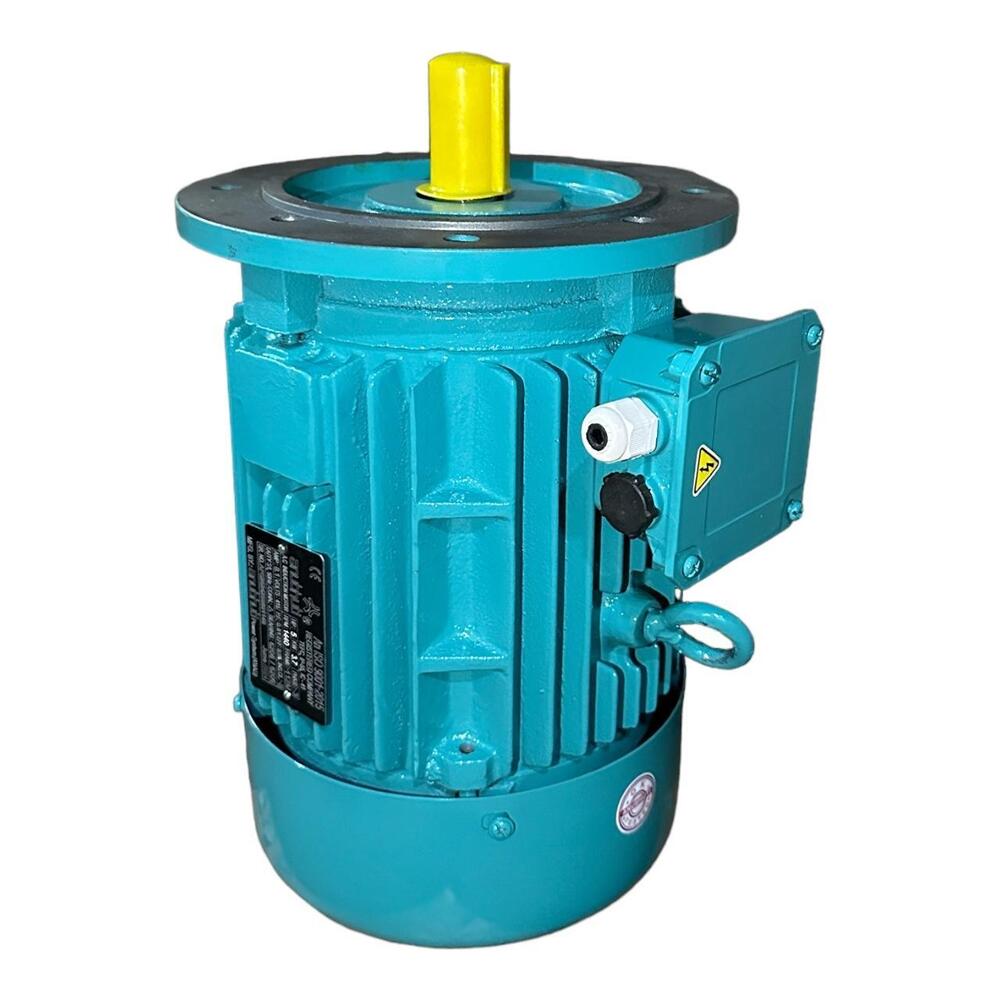

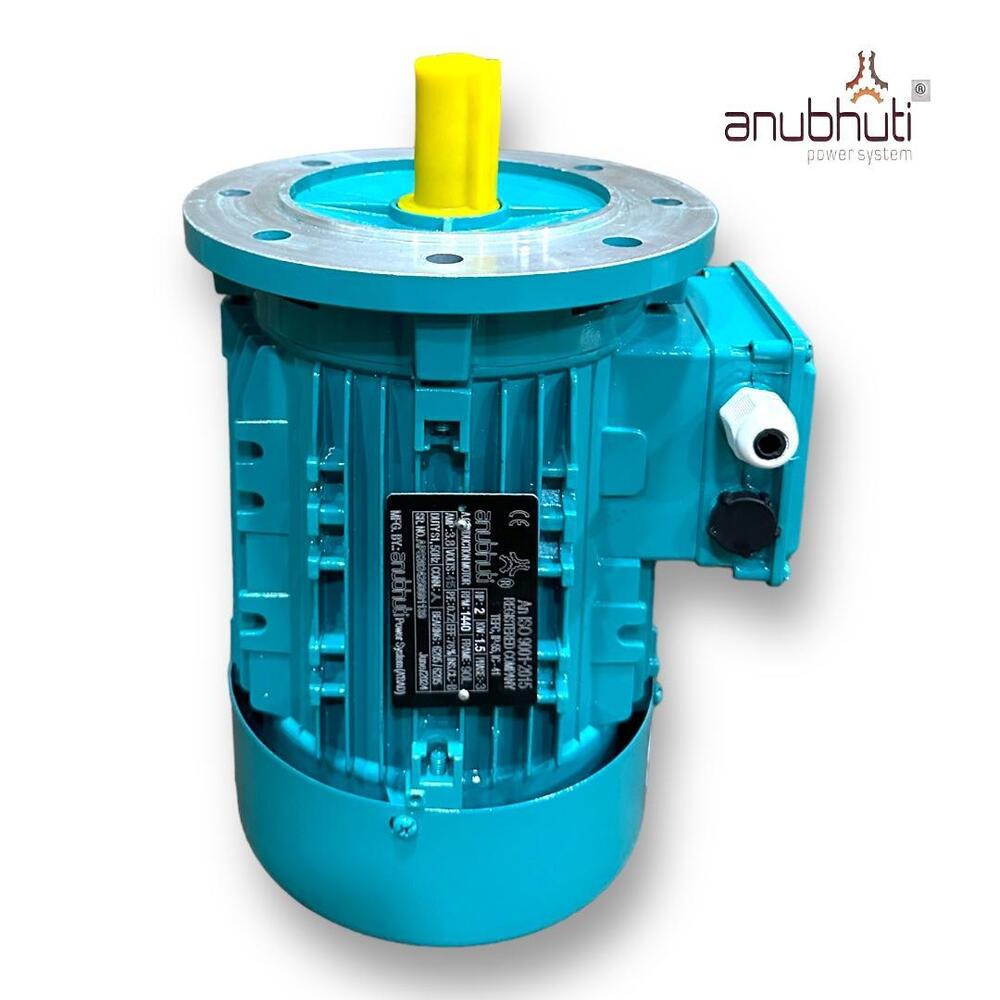

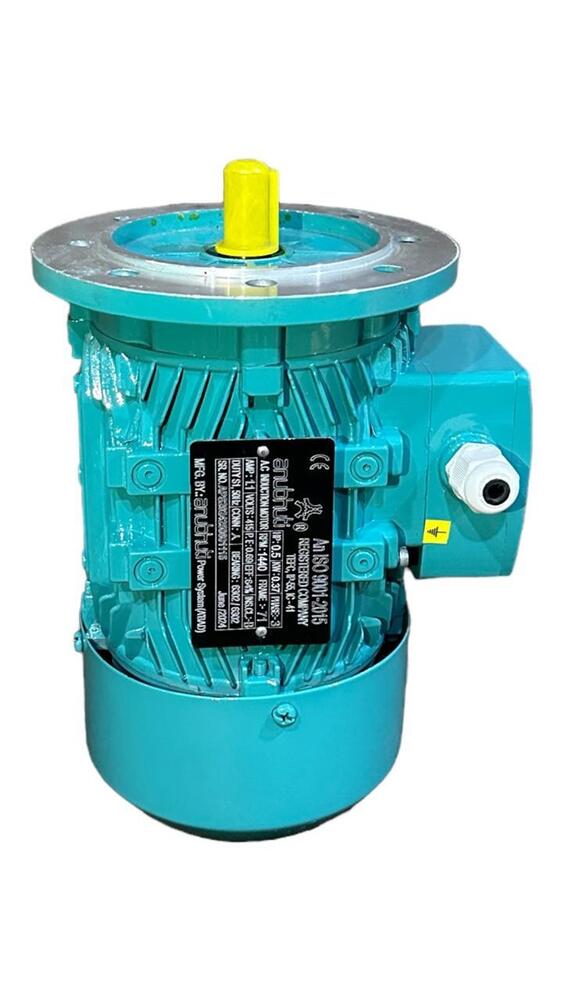

FLANGE MOUNTED MOTOR

8550 INR/Piece

Get a Price/Quote

Product Details:

Current Type AC
Efficacy 84.2%
Noise Level 24 db
Torque 240 N-m
Cooling Method TEFC
Sealed Type Packing seal
Pressure High Pressure
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

FLANGE MOUNTED MOTOR Price And Quantity

Minimum Order Quantity 5 Piece
Price 8550 INR/Piece
Price Range 3680.00 - 36800.00 INR/Piece

FLANGE MOUNTED MOTOR Product Specifications

Warranty 2 YEARS
Efficacy 84.2%
Color BLACK (AS PER REQUIRED)
Torque 240 N-m
Noise Level 24 db
Mounting Type B5
Cooling Method TEFC
Frequency (MHz) 50HZ Hertz (HZ)
Current Type AC
Speed 1440 RPM
Starting Type Electric Start
Power 4.7 AMP Ampere (amp)
Phase Three Phase
Rated Frequency 50HZ Hertz (HZ)
Dimension (L*W*H) 370*250*296 Millimeter (mm)
Shaft Diameter 28MM Millimeter (mm)
Output Power 3 HP Horsepower (HP)
Power Rating 4.7AMP
Poles Number 4
Rated Voltage 2250 WATT Watt (W)
Protect Feature Totally Enclosed
Sealed Type Packing seal
Product Type Induction Motor
Pressure High Pressure
IP Rating ip55
Weight 35KG Kilograms (kg)
Bearing Type BALL BEARING 6206 2RS
Features IS 12615
Voltage 420 Volt (v)
Ambient Temperature 50"C Celsius (oC)

FLANGE MOUNTED MOTOR Trade Information

FOB Port EX FACTORY
Payment Terms Cash Against Delivery (CAD) Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 25 Piece Per Day
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details COROCATED BOX
Main Export Market(s) Asia Africa
Main Domestic Market All India
Certifications ISO 9001 : 2015 IAF CE CIRTIFIED

Product Description

Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Range:

Range : 0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 180L in 2, 4, 6, & 8 Pole

Mounting: Foot “ Flange “ Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'THREE PHASE ELECTRIC MOTOR' category

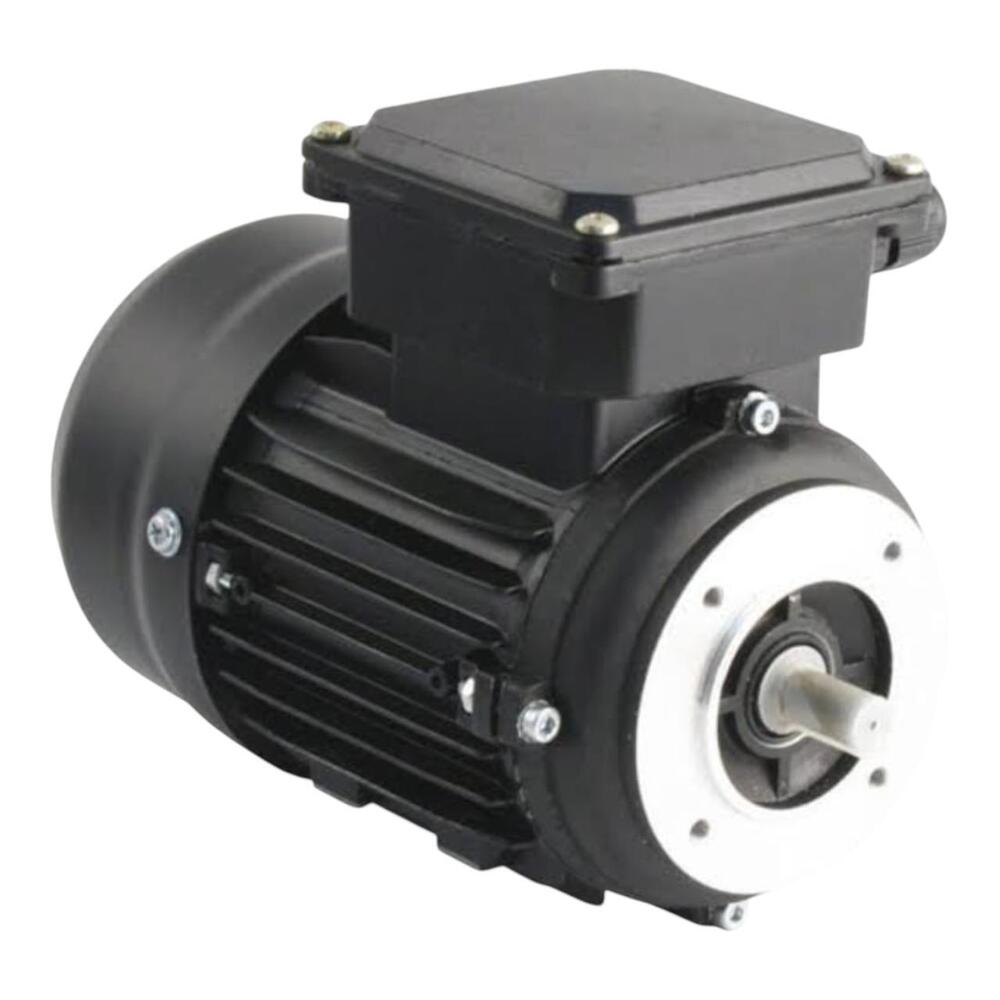

FACE MOUNTED MOTOR Price : 5750 INR/Piece Minimum Order Quantity : 5 Output Power : 2HP Horsepower (HP) Phase : Three Phase Power : 3.00AMP Ampere (amp) Rated Frequency : 50HZ Hertz (HZ) Protect Feature : Totally Enclosed Rated Voltage : 1500WATT Watt (W) IP Rating : ip55 Product Type : Asynchronous Motor Pressure : High Pressure Sealed Type : Packing seal Ambient Temperature : 50"C Celsius (oC) Voltage : 420 Volt (v) Features : IS 12615 Efficacy : 82.7% Warranty : 2 YEARS Noise Level : 24 db Color : BLACK (AS PER REQUIRED) Speed : 1440 RPM Current Type : AC Frequency (MHz) : 50HZ Hertz (HZ) Starting Type : Electric Start Poles Number : 4 Shaft Diameter : 24MM Millimeter (mm) Power Rating : 3.0AMP Weight : 28KG Kilograms (kg) Bearing Type : BALL BEARING 6205 2RS Cooling Method : TEFC Mounting Type : B14 Torque : 250% Nm

Send Inquiry

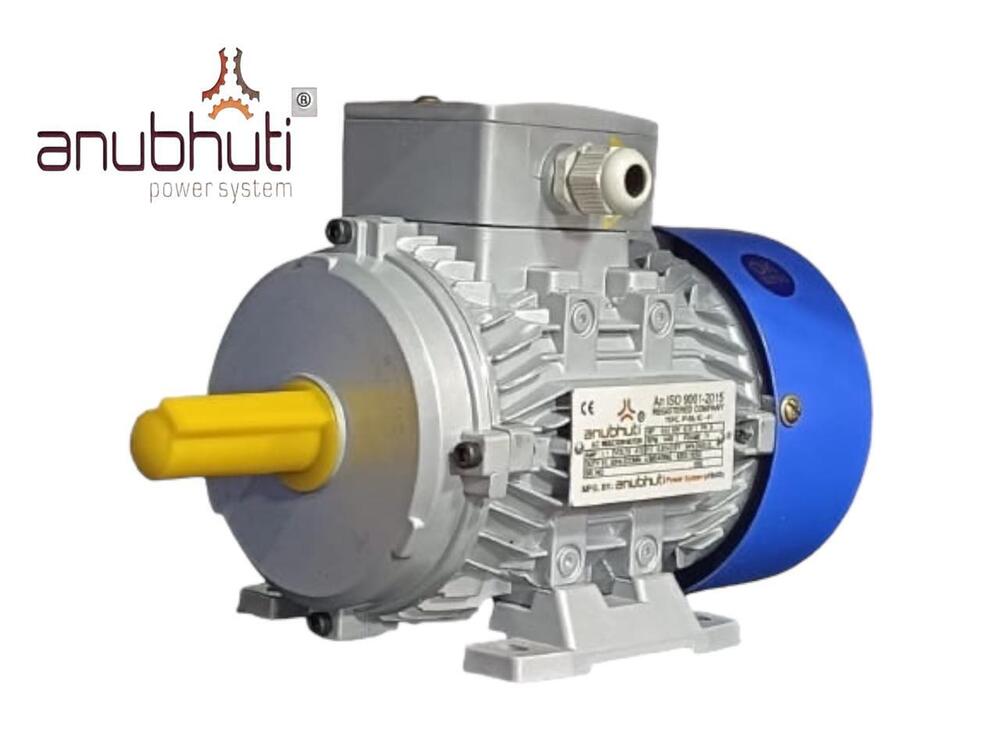

3PHASE ELECTRIC MOTOR Price : 4250.0 INR/Piece Minimum Order Quantity : 1 Output Power : 750 Watt (w) Phase : Three Phase Power : 1.9 Ampere (amp) Rated Frequency : 50 Hertz (HZ) Protect Feature : DripProof Rated Voltage : 750 Watt (W) IP Rating : ip44, ip55 Product Type : Induction Motor Pressure : Moderate Pressure Sealed Type : Packing seal Ambient Temperature : 40 Celsius (oC) Voltage : 420 Volt (v) Features : IS 12615 Efficacy : 74% Warranty : 1 YEARS Noise Level : 24 db Color : SILVER Speed : 1440 RPM Current Type : AC Frequency (MHz) : 50 Hertz (HZ) Starting Type : S1 DUTY Shaft Diameter : 19MM Millimeter (mm) Power Rating : 1.9AMP Bearing Type : BALL BEARING 6204 2RS Cooling Method : TEFC Mounting Type : B3, B5, B14, B34, B35 Torque : 220% Nm

Send Inquiry

Three Phase Motor Price : 8550 INR/Piece Minimum Order Quantity : 1 Output Power : 1 HP TO 40 HP Horsepower (HP) Phase : Three Phase Power : 1 HP TO 40 HP Horsepower (HP) Rated Frequency : 50 Hertz (HZ) Protect Feature : DripProof Rated Voltage : 0.6 TO 60 Ampere (A) IP Rating : ip44, ip55 Product Type : Induction Motor Pressure : High Pressure Sealed Type : Packing seal Ambient Temperature : 50 Celsius (oC) Voltage : 220 & 440 Volt (v) Features : IS 12615 Efficacy : IE2 Warranty : 1 YEAR Noise Level : 24 db Color : SILVER & BLUE Speed : 750 , 960 , 1440, 2880 RPM Current Type : AC Frequency (MHz) : 50 Hertz (HZ) Starting Type : Electric Start Poles Number : 4, 8, 2, 6 Weight : 21 Kilograms (kg)

Send Inquiry

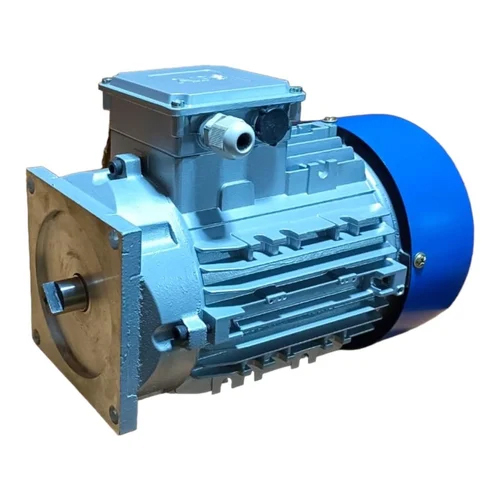

3HP CI Three Phase Electric Motor
