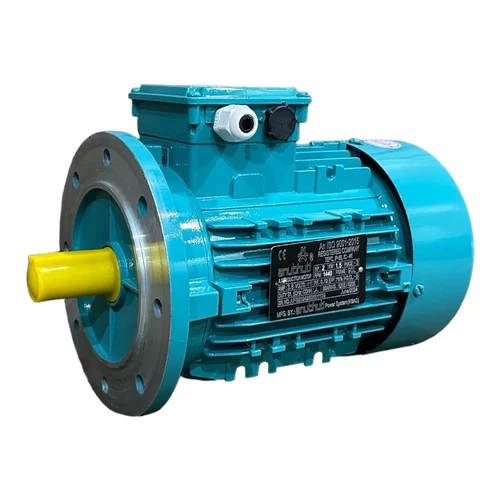

THREE PHASE INDUCTION MOTOR

Name: THREE PHASE INDUCTION MOTOR
Brand: ANUBHUTI POWER SYSTEM
Price: 3250 INR
Availability: InStock

3250 INR/Piece

Get a Price/Quote

Product Details:

Noise Level 27 db
Efficacy 72.7%
Power Rating 1.2 AMP
Bearing Type BALL BEARING 6203 2RS
Poles Number 4
Features IS 12615
Rated Frequency 50 Hertz (HZ)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

THREE PHASE INDUCTION MOTOR Price And Quantity

Price 3250 INR/Piece
Minimum Order Quantity 5 Piece
Price Range 2650.00 - 19800.00 INR/Piece

THREE PHASE INDUCTION MOTOR Product Specifications

Pressure High Pressure
Voltage 420 Volt (v)
Sealed Type Packing seal
Product Type Induction Motor
Rated Voltage 370 Watt (W)
Protect Feature Totally Enclosed
IP Rating ip44, ip55
Mounting Type B3, B5, B14, B34, B35
Torque 220% N-m
Phase Three Phase
Current Type AC
Shaft Diameter 14MM Millimeter (mm)
Ambient Temperature 50 Celsius (oC)
Rated Frequency 50 Hertz (HZ)
Starting Type Electric Start
Speed 1440 RPM
Features IS 12615
Output Power 0.5 Horsepower (HP)
Poles Number 4
Weight 7.9 Kilograms (kg)
Warranty 2 YEARS
Bearing Type BALL BEARING 6203 2RS
Power Rating 1.2 AMP
Frequency (MHz) 50 Hertz (HZ)
Color SILVER
Noise Level 27 db
Efficacy 72.7%
Power 1.2 Ampere (amp)

THREE PHASE INDUCTION MOTOR Trade Information

FOB Port EX FACTORY
Payment Terms Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C)
Supply Ability 50 Piece Per Day
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details COROCATED BOX
Main Export Market(s) Asia
Main Domestic Market All India
Certifications ISO 9001 : 2015 IAF CE CIRTIFIED

Product Description

The 3 Phase AC Motor is a highly efficient and dependable machine, widely utilized in diverse industrial applications. Operating on three-phase alternating current (AC), the most common power supply in industrial settings, it converts electrical energy into mechanical energy through magnetic field interactions. Known for its high power output, superior efficiency, and capability to perform continuously under demanding conditions, it is the perfect solution for heavy-duty machinery and equipment. Anubhuti Power System is a leading manufacturer in India, offering top-quality and efficient 3 Phase AC Motors to meet various industrial requirements.

Frame	K.W.	H.P.	R.P.M.	I. Class	Duty	Enclosure	Protection
63 to 160l	0.18 to 22	0.25 to 30	2900	B, E, F	S1	TEFC	IP 44
			1500	S2	TESC	IP 55
			1000	S3	IP 54
			750	S4

All Motor As Per IS 12615 (2011)
Mounting: Foot (B3), Flange (B5), Face (B14) & Combination
