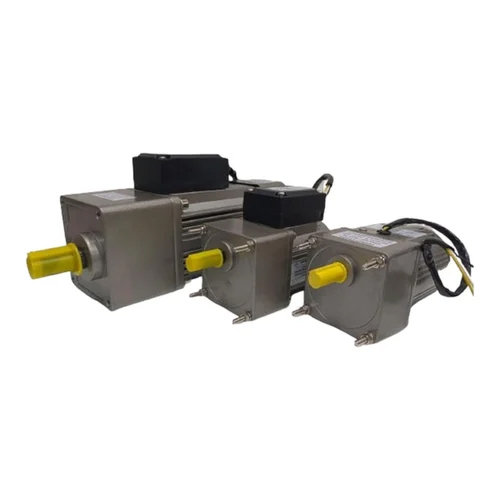

Three Phase AC Compact Gear Motor

Gear Motor

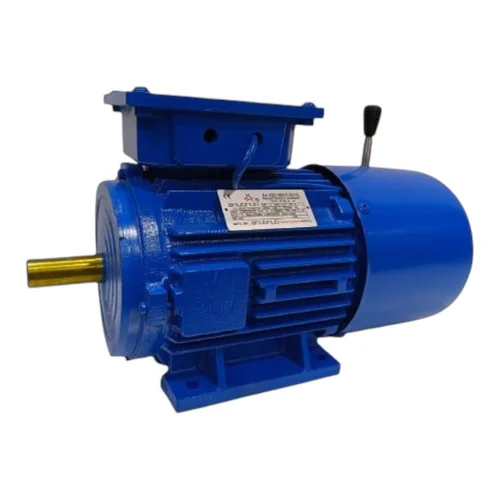

Electric Foot Mounted Brake Motor

Gear Motor

General:- ANUBHUTI Geared Motors and inline helical gear reducer have been developed in our factory to give co-axial,and compact and reliable mode of speed reduction at high torque. The gear casings are manufactured from high grade cast iron and are liberally designed for maximum heat dissipation and cool running. Gear and pinions are made from special case hardening alloy steel and are specially heat-treated. Range:- In addition to our standard range of production of 0.16 HP to 30 HP,0.1 to 700 RPM as detailed in our price list,other sizes can be offered on specific enquires. Motor:- Electric motors used in gear units are totally enclosed,fan cooled,squirrel cage induction motors suitable for operation on 415V,50HZ,3 Phase,AC supply,Generally IP 54 enclosure,with class B insulation and as per IS : 325 ï 1978. However motors with different electrical and mechanical characteristic can also be offered. Lubrication:- Bearing and gears are lubricated by normal splashing of oil and requires no special attention for long peroids. First fill oil is not supplied. All geared motors are provided with oil filler cum breather plug,drain plug and oil level indicator.The first change of oil should be made after approximately 350 to 450 operating hours. The recommended oils are Indian oil Servo mesh SP 60 or Hindustan Petroleum ï Gervil EP 5 or 4 equivalent.
