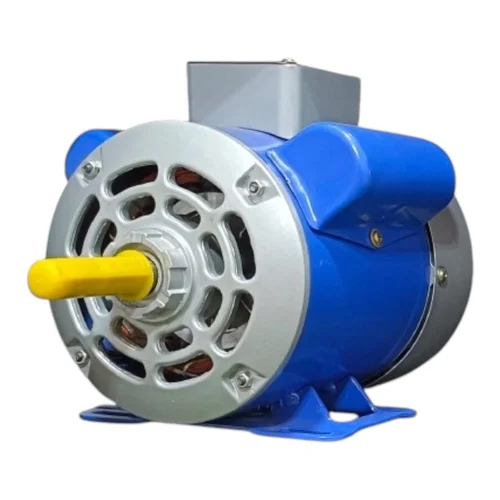

Single Phase Foot Mounted Motor

Name: Single Phase Foot Mounted Motor
Brand: ANUBHUTI POWER SYSTEM
Price: 5560 INR
Availability: InStock

5560 INR/Piece

Get a Price/Quote

Product Details:

Efficacy 71%
Rated Frequency 50HZ Hertz (HZ)
Torque 220% N-m
Rated Voltage 750 Watt (W)
Poles Number 4, 2
Features IS 12615
Power Rating 4.7AMP
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Single Phase Foot Mounted Motor Price And Quantity

Price 5560 INR/Piece
Minimum Order Quantity 1 Piece
Price Range 3550.00 - 10750.00 INR/Piece

Single Phase Foot Mounted Motor Product Specifications

Power Rating 4.7AMP
Speed 1440 RPM
Noise Level 24 db
Current Type AC
Power 4.7 AMP Ampere (amp)
Torque 220% N-m
Rated Frequency 50HZ Hertz (HZ)
Efficacy 71%
Rated Voltage 750 Watt (W)
Features IS 12615
Poles Number 4, 2
Mounting Type B3, B5, B14, B34, B35
Frequency (MHz) 50HZ Hertz (HZ)
Output Power 1HP Horsepower (HP)
Warranty 1 YEARS
Shaft Diameter 19MM Millimeter (mm)
IP Rating ip44
Pressure High Pressure
Sealed Type Packing seal
Starting Type S1 DUTY
Bearing Type BALL BEARING 6204 2RS
Product Type Induction Motor
Color SILVER AND BLUE
Ambient Temperature 50"C Celsius (oC)
Cooling Method TEFC
Voltage 220V Volt (v)
Protect Feature Totally Enclosed
Phase Single Phase

Single Phase Foot Mounted Motor Trade Information

FOB Port EX FACTORY
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 25 Piece Per Day
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details BOX
Main Export Market(s) Asia
Main Domestic Market All India
Certifications ISO 9001-2015 CE

Product Description

Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Range:

Range :0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2 & 4 Pole
Mounting: Foot Flange Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
