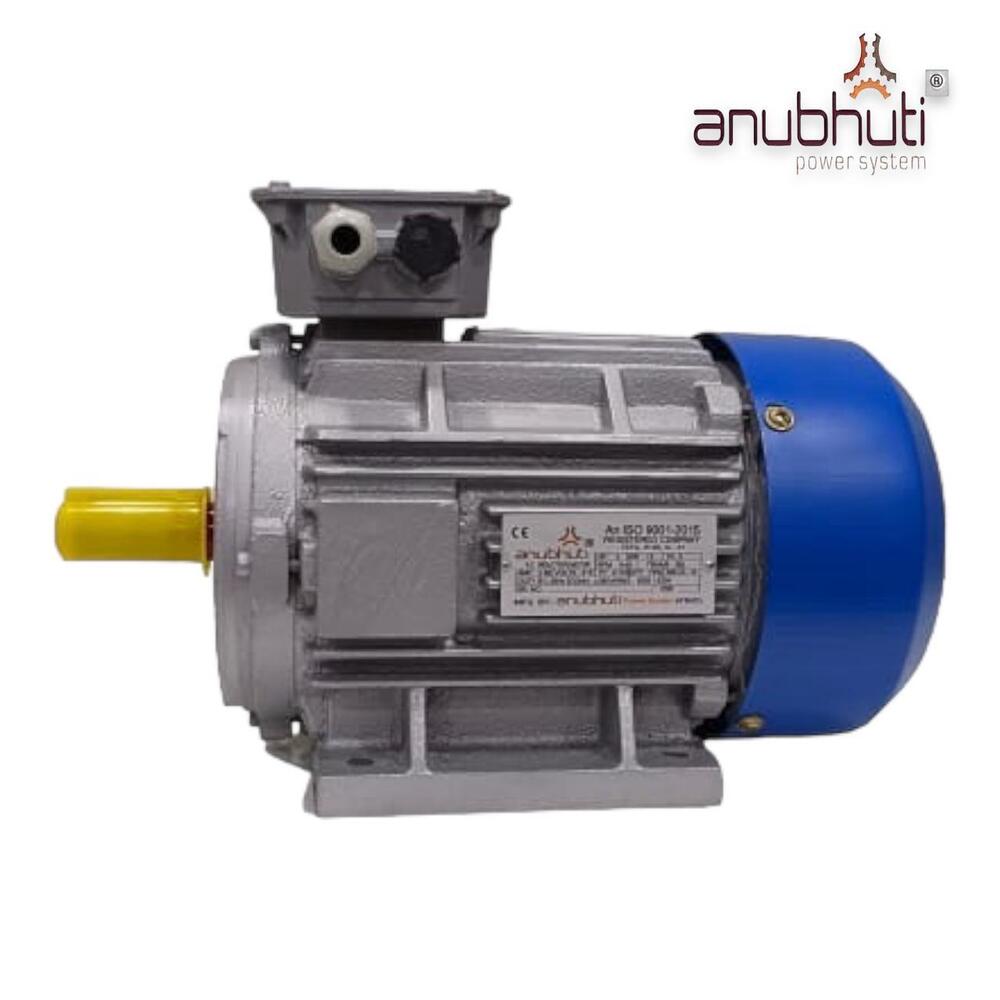

FOOT MOUNTED MOTOR

4250 INR/Piece

Get a Price/Quote

Product Details:

Voltage 420 Volt (v)
Rated Frequency 50HZ Hertz (HZ)
Features IS 12615
Sealed Type Packing seal
Poles Number 2
Bearing Type BALL BEARING 6204 2RS
Rated Voltage 750 Watt (W)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

FOOT MOUNTED MOTOR Price And Quantity

Minimum Order Quantity 1 Piece
Price 4250 INR/Piece

FOOT MOUNTED MOTOR Product Specifications

Speed 2880 RPM
Weight 9.3 Kilograms (kg)
Phase Three Phase
Cooling Method TEFC
Warranty 2 YEARS
Bearing Type BALL BEARING 6204 2RS
Rated Voltage 750 Watt (W)
Sealed Type Packing seal
Output Power 1HP Horsepower (HP)
Poles Number 2
Ambient Temperature 50"C Celsius (oC)
Noise Level 24 db
Efficacy 74%
Current Type AC
Pressure High Pressure
Power Rating 1.9AMP
Product Type Induction Motor
Torque 220% N-m
Protect Feature Totally Enclosed
Mounting Type B3
Power 1.9 Ampere (amp)
Color SILVER
IP Rating ip55
Frequency (MHz) 50HZ Hertz (HZ)
Features IS 12615
Shaft Diameter 19MM Millimeter (mm)
Rated Frequency 50HZ Hertz (HZ)
Starting Type Electric Start
Voltage 420 Volt (v)

FOOT MOUNTED MOTOR Trade Information

FOB Port EX FACTORY
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)
Supply Ability 50 Piece Per Day
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details COROCATED BOX
Main Export Market(s) Asia
Main Domestic Market All India
Certifications ISO 9001 : 2015IAF CE CIRTIFIED

Product Description

Ratings:All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency:Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)
Enclosures:Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Range:

Range :0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 180L in 2, 4, 6, & 8 Pole

Mounting:Foot ï Flange ï Face
Standards:Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
Frame:Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
