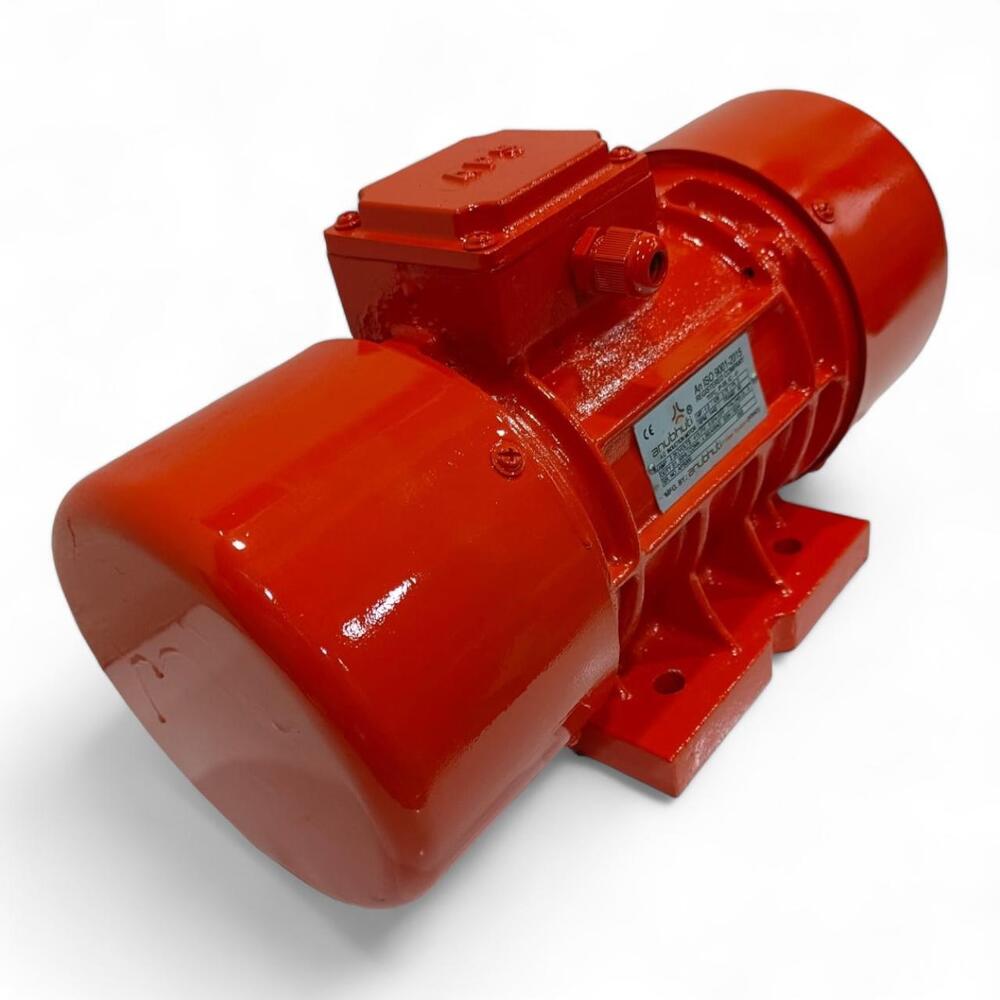

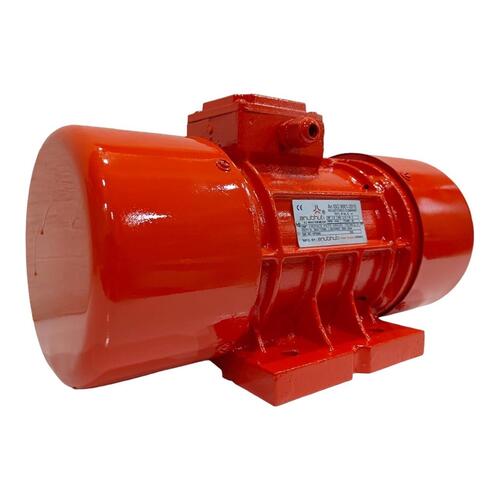

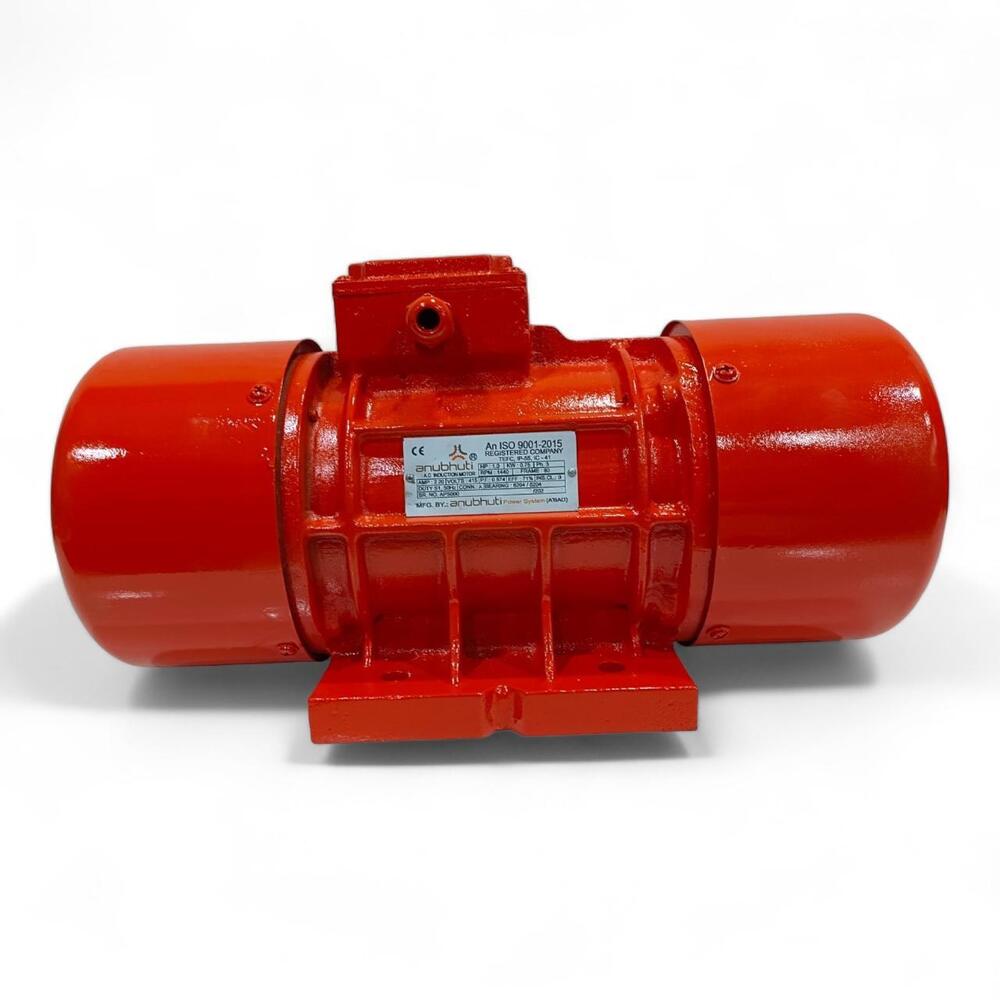

VIBRATOR MOTOR

9350 INR/Piece

Get a Price/Quote

Product Details:

Cooling Method TEFC
Power Rating 2.1AMP
Pressure High Pressure
Voltage 415V Volt (v)
Torque 220% N-m
Rated Frequency 50HZ Hertz (HZ)
Rated Voltage 750 Watt (W)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

VIBRATOR MOTOR Price And Quantity

Minimum Order Quantity 1 Piece
Price 9350 INR/Piece
Price Range 5150.00 - 48500.00 INR/Piece

VIBRATOR MOTOR Product Specifications

Features IS 12615
Speed 1440 RPM
Bearing Type BALL BEARING 6205 2RS
Sealed Type Packing seal
Efficacy 74%
Poles Number 4
Ambient Temperature 50"C Celsius (oC)
Output Power 1HP Horsepower (HP)
Product Type Induction Motor
Mounting Type B5
Noise Level 24 db
IP Rating ip55
Protect Feature Totally Enclosed
Color ORANGE
Power Rating 2.1AMP
Warranty 1 YEARS
Shaft Diameter 19MM
Frequency (MHz) 50HZ Hertz (HZ)
Cooling Method TEFC
Pressure High Pressure
Phase Three Phase
Rated Frequency 50HZ Hertz (HZ)
Power 2.1 Ampere (amp)
Voltage 415V Volt (v)
Torque 220% N-m
Starting Type Electric Start
Rated Voltage 750 Watt (W)
Current Type AC

VIBRATOR MOTOR Trade Information

FOB Port EX FACTORY
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 15 Piece Per Day
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details BOX PACKAGING
Main Export Market(s) Asia
Main Domestic Market All India
Certifications ISO 9001 : 2015 IAF CE CIRTIFICATION

Product Description

Specifications

Concept: The external vibrator is a three-phase or single-phase synchronous motor that has eccentric weights (unbalance weight) mounted at the ends of the Rotor shaft. The rotating shaft causes centrifugal forces, which can be adjusted by moving the weights it creates a vibration.

Bearing & Lubrication: The right type of bearing for every application guarantees long service life even continuous operation. All vibratory motors are permanently lubricated for normal operation. The large capacity motor can be re-lubricated for the average application. Sp. Type of grease is used in the vibratory motor.

Range:

Range: 0.25 H.P. to 10 H.P. in 2, 4, 6 & 8 poles 3 phase supply volts 415 +- 5% 50 Hz. +- 5% On customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.0.25 H.P. TO 2 H.P. in 2,4 pole 1phase supply volts 215 +-5% 50Hz. +-5% (on customer request we are also able to supply motor in 110 volts on 60 Hz) Centrifugal force kg.: 250 to 6500Mounting: Foot-flange-Vibration-proof motor winding: Insulation class F enhances the safety under continuous operating conditions and at high ambient temperatures. The motor is tropical zed and designed for an extended voltage range.
