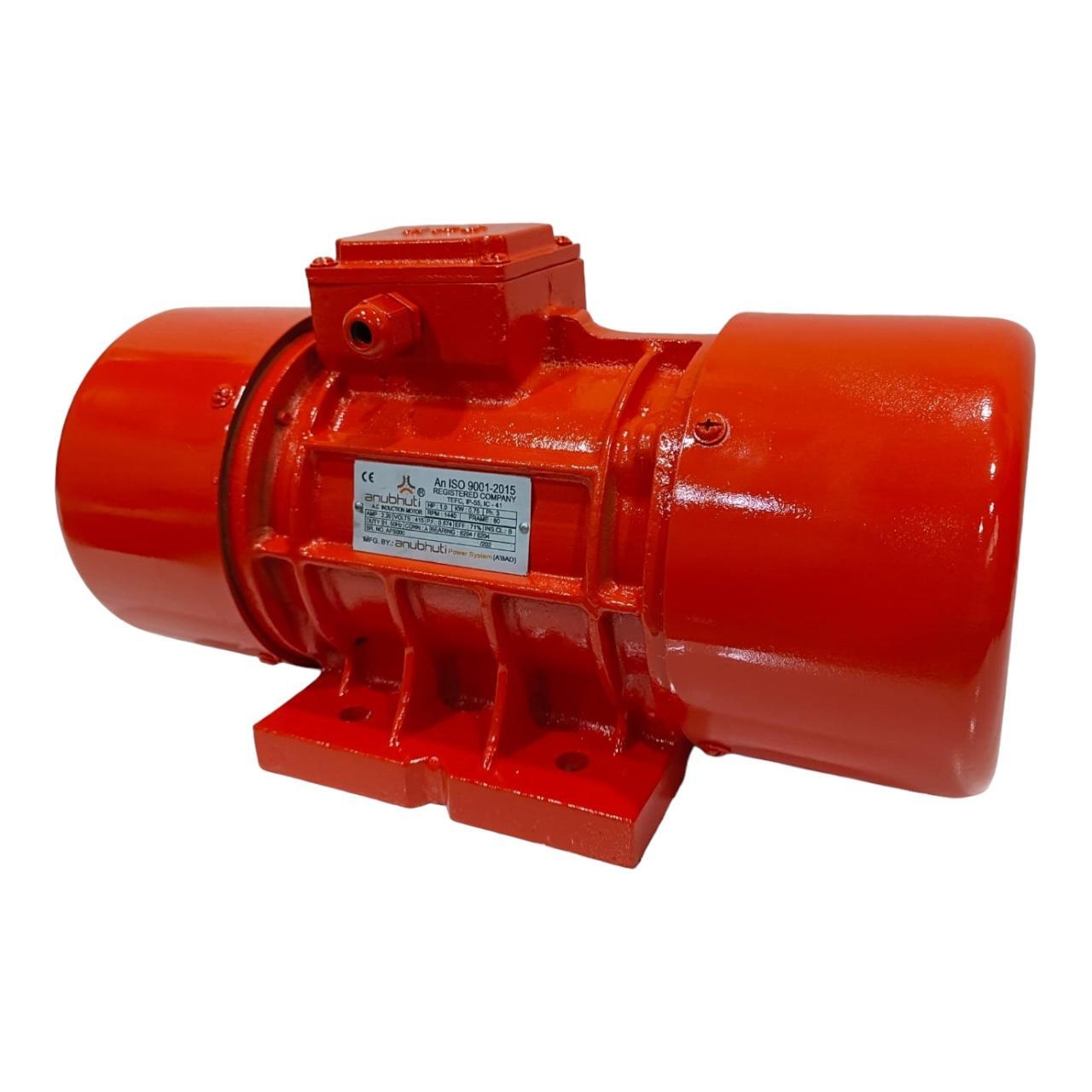

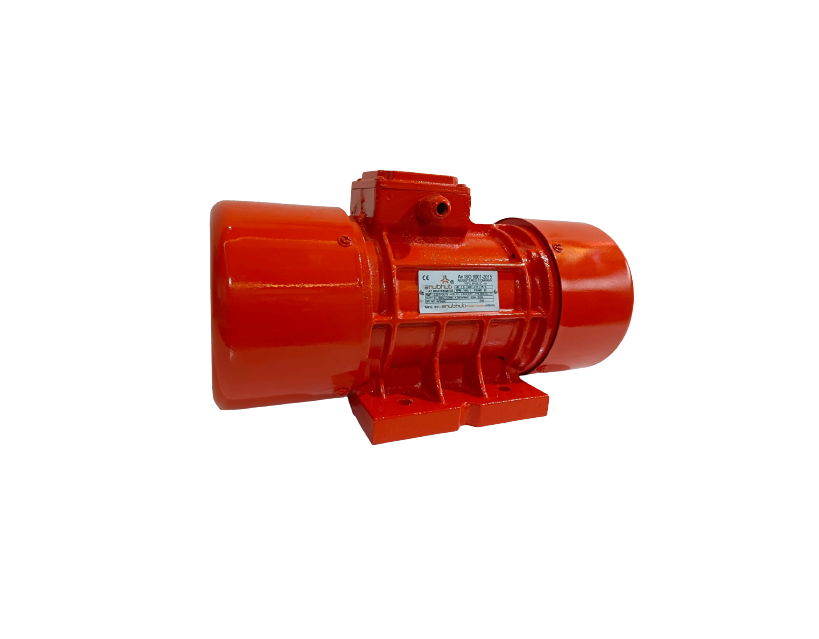

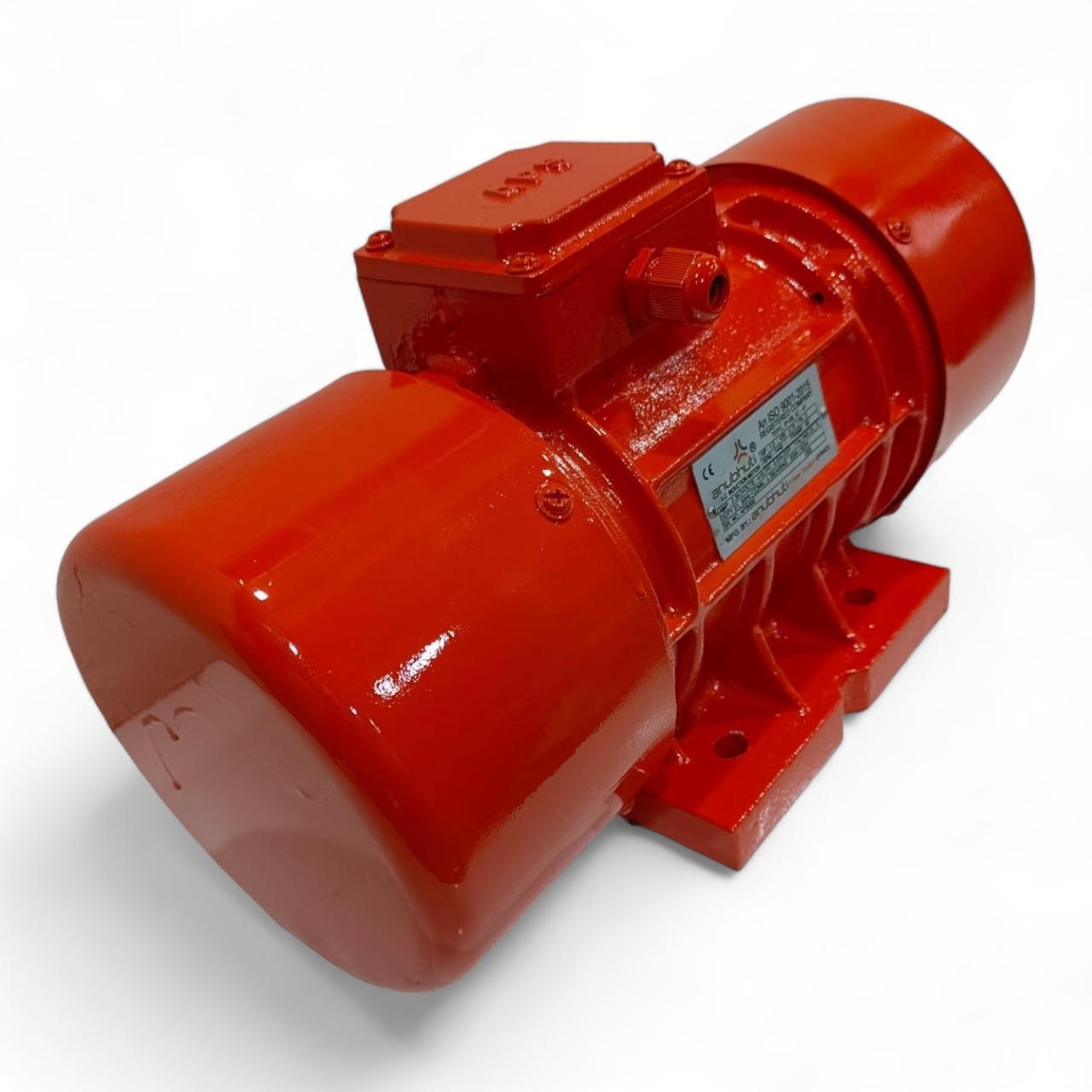

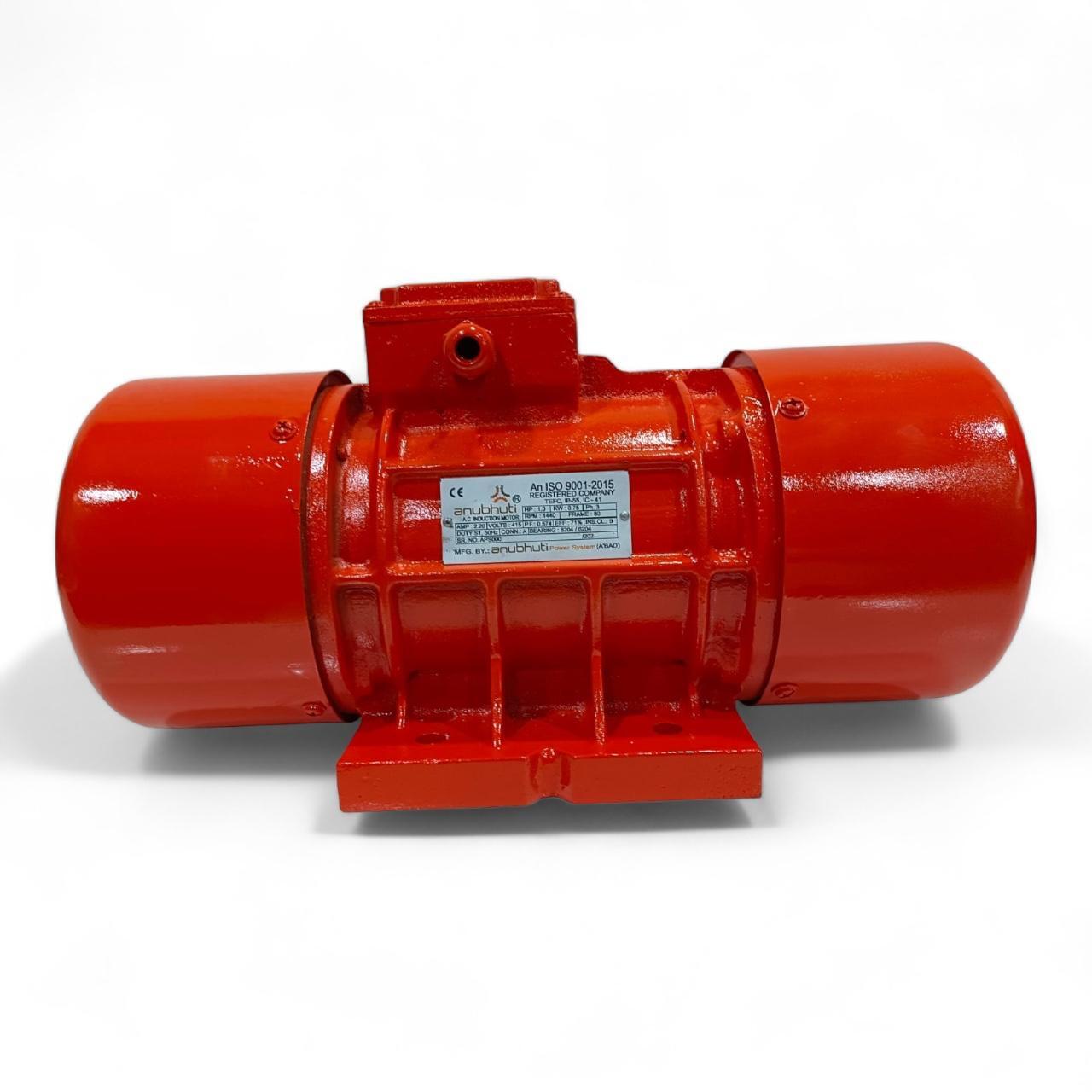

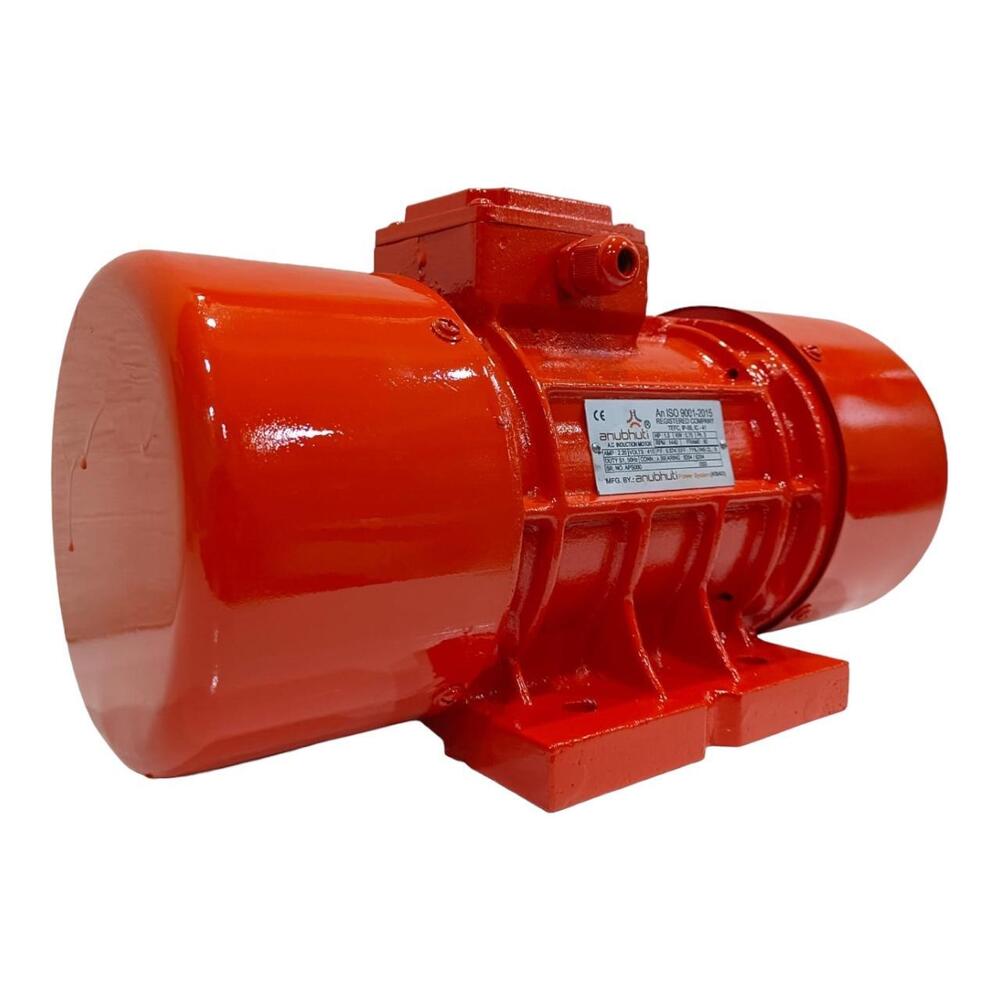

Vibrating Motor

ConceptThe external vibrator is a threephase or single phase synchronous motor that has eccentric weights unbalance weight mounted at the ends of the Rotor shaft The rotating shaft causes centrifugal forces which can be adjusted by moving the weights it create a vibration

Range025 HP to 10 HP in 2 4 6  8 poles 3 phase supply volts 415  5 50 Hz  5 On customer request we are also able supply motor in 220 380 460 525 volts on HZ 50 or 60025 HP TO 2 HP in 24 pole 1phase supply volts 215 5 50Hz 5 on customer request we are also able supply motor in 110 volts on 60 Hz Centrifugal force kg 250 to 6500

MountingFootflangeVibrationproof motor winding Insulation class F enhances the safety under continuous operation conditions and at high ambient temperatures Motor are tropical zed and designed for an extended voltage range

Bearing  LubricationThe right type of bearing for every application guarantees long service life even continuous operation All vibratory motors are permanently lubricated for normal operation Large capacity motor can be relubricated for average application Sp Type of grease is used in vibratory motor

Product Specification

Brand

Anubhuti

Power

025 HP to 10 HP

Phase

Three Phase

Speed RPM

1500 960 720

Frame

71 to 160L

I Class

BEF

Duty

S1 S2

Enclosure

TEFC TESC

IP Rating

IP 54 IP55

Voltage

415V
