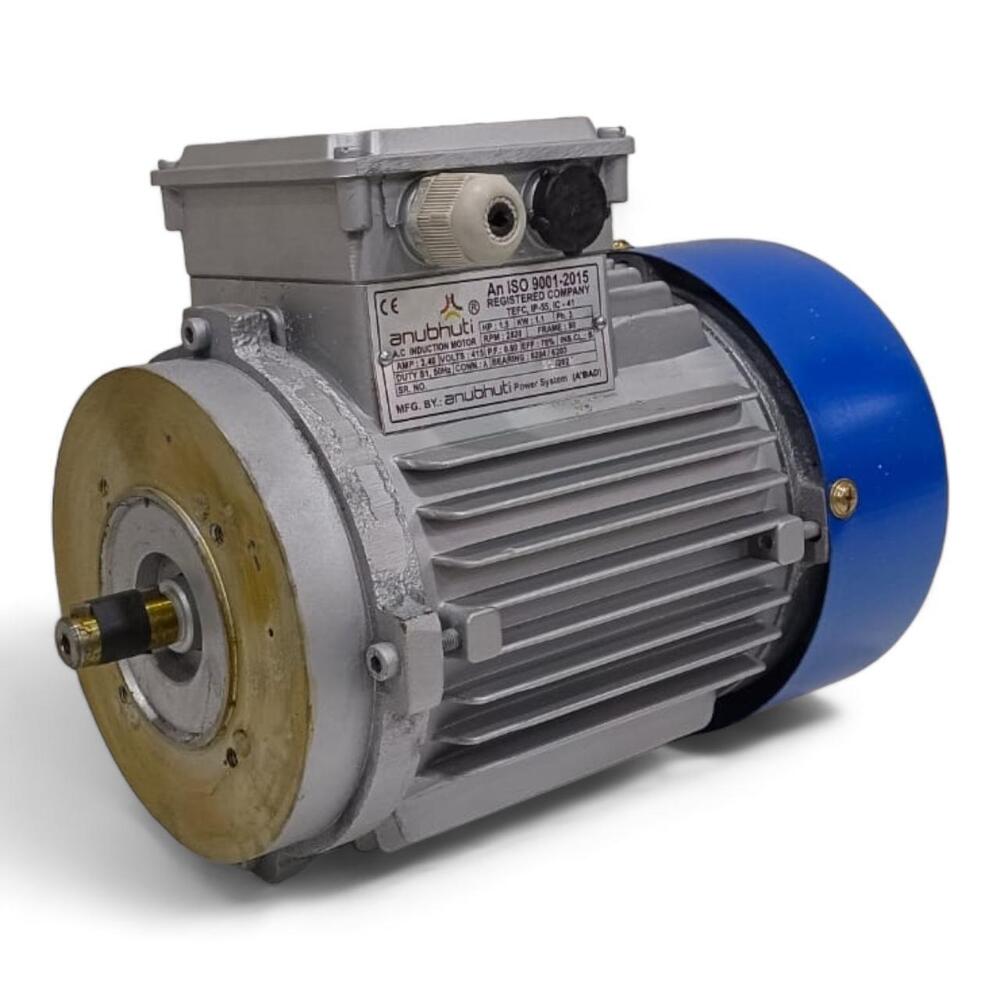

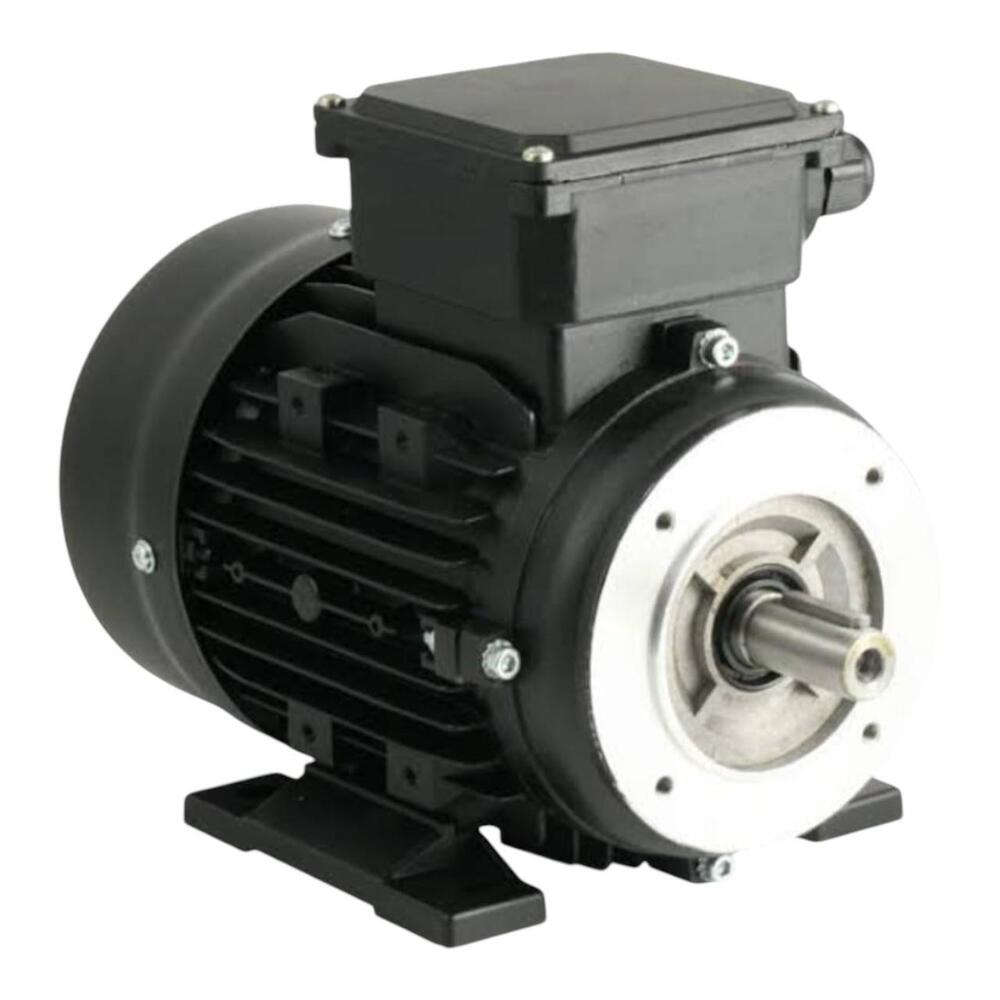

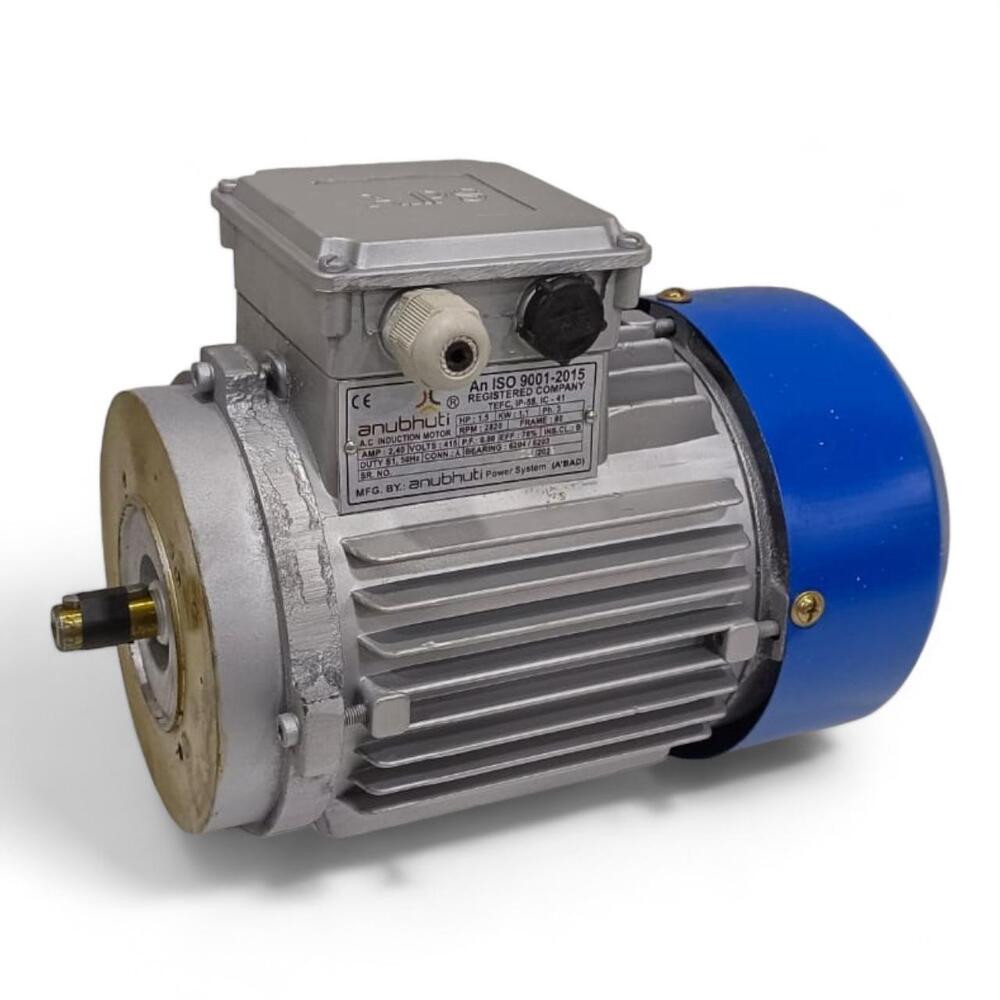

FACE MOUNTED MOTOR

5750 INR/Piece

Get a Price/Quote

Product Details:

Current Type AC
Efficacy 82.7%
Cooling Method TEFC
Torque 250% N-m
Noise Level 24 db
Pressure High Pressure
Sealed Type Packing seal
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

FACE MOUNTED MOTOR Price And Quantity

Price 5750 INR/Piece
Minimum Order Quantity 5 Piece
Price Range 2650.00 - 19800.00 INR/Piece

FACE MOUNTED MOTOR Product Specifications

Phase Three Phase
Power 3.00AMP Ampere (amp)
Rated Frequency 50HZ Hertz (HZ)
Output Power 2HP Horsepower (HP)
Shaft Diameter 24MM Millimeter (mm)
Power Rating 3.0AMP
Poles Number 4
Rated Voltage 1500WATT Watt (W)
Protect Feature Totally Enclosed
Sealed Type Packing seal
Pressure High Pressure
Product Type Asynchronous Motor
IP Rating ip55
Weight 28KG Kilograms (kg)
Bearing Type BALL BEARING 6205 2RS
Features IS 12615
Voltage 420 Volt (v)
Ambient Temperature 50"C Celsius (oC)
Warranty 2 YEARS
Efficacy 82.7%
Color BLACK (AS PER REQUIRED)
Noise Level 24 db
Torque 250% N-m
Mounting Type B14
Cooling Method TEFC
Frequency (MHz) 50HZ Hertz (HZ)
Current Type AC
Speed 1440 RPM
Starting Type Electric Start

FACE MOUNTED MOTOR Trade Information

FOB Port EX FACTORY
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 30 Piece Per Day
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details COROCATED BOX
Main Export Market(s) Asia
Main Domestic Market All India
Certifications ISO 9001 : 2015 IAF CE CIRTIFIED

Product Description

Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Range:

Range : 0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 180L in 2, 4, 6, & 8 Pole

Mounting: Foot “ Flange “ Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
