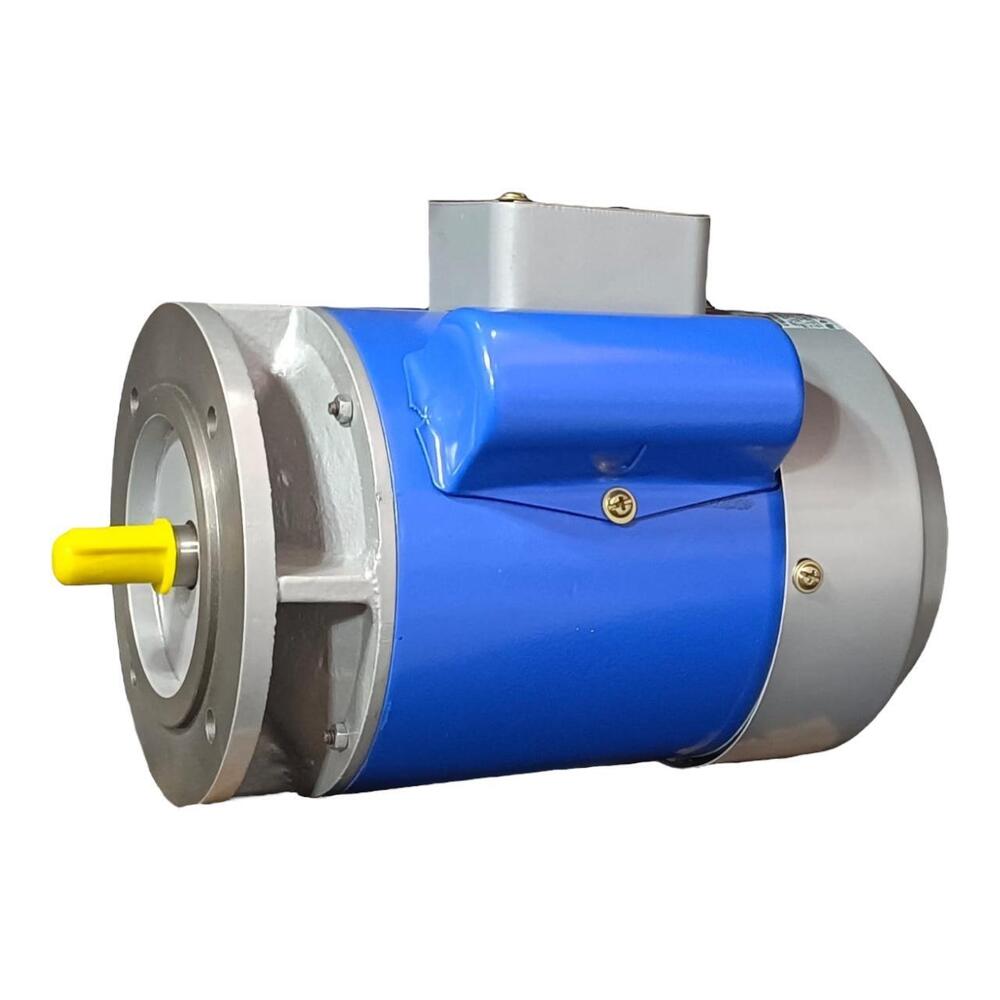

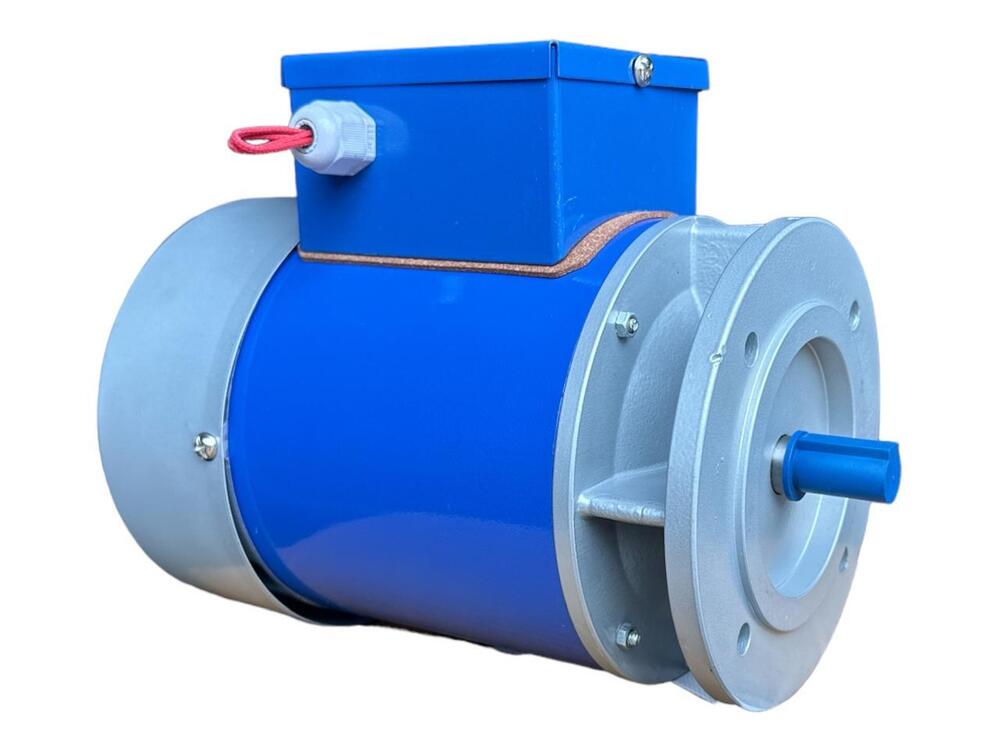

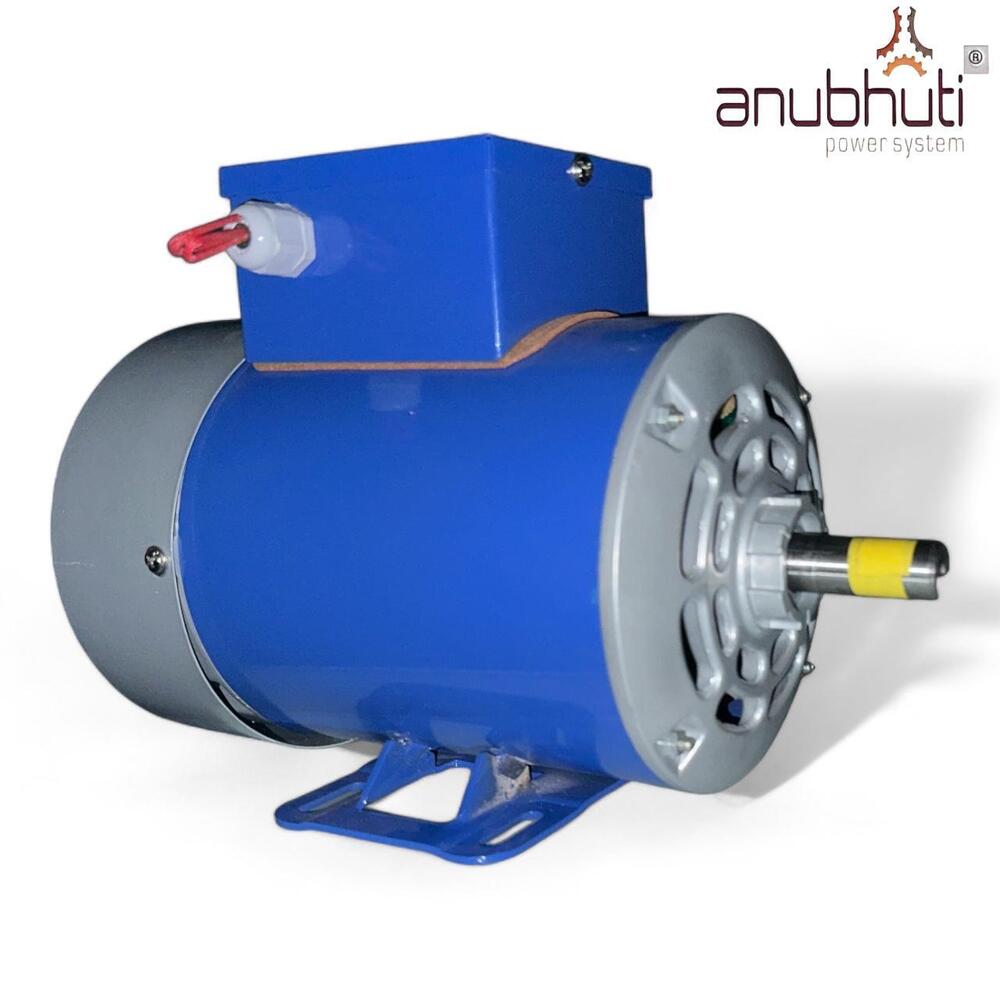

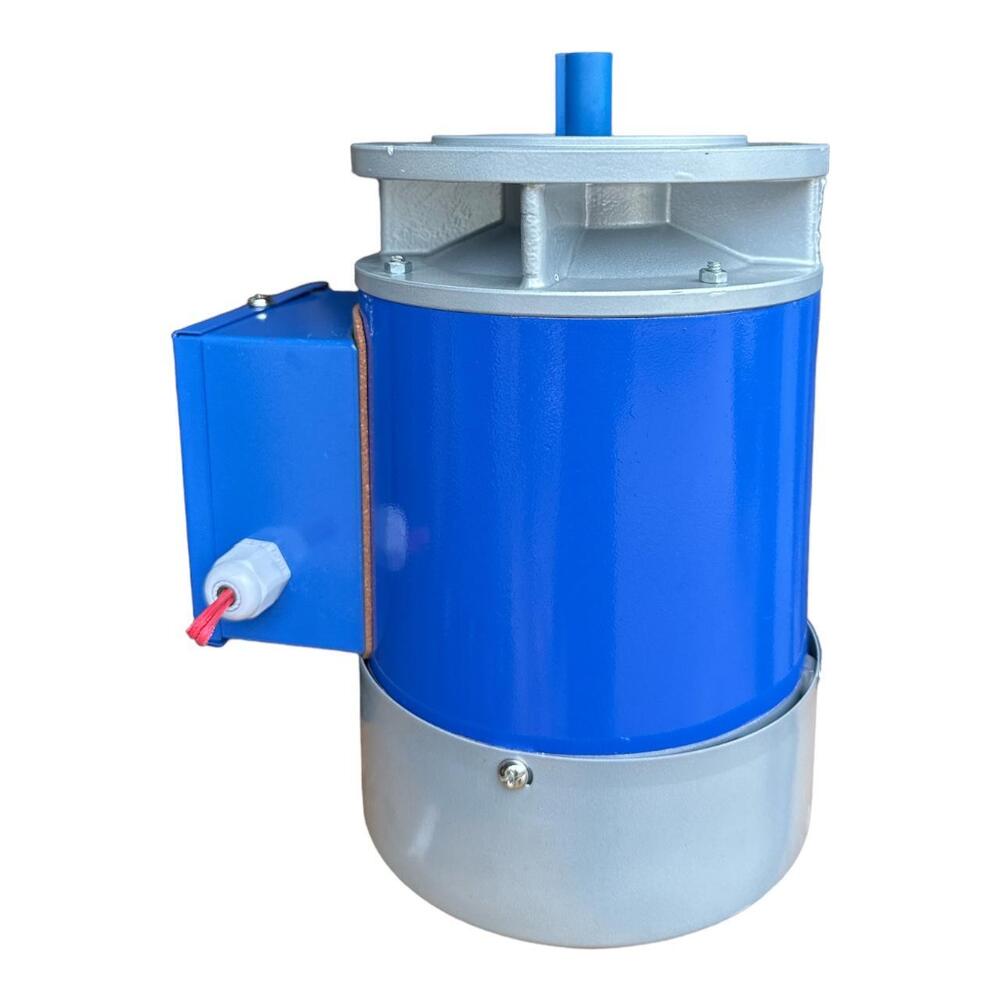

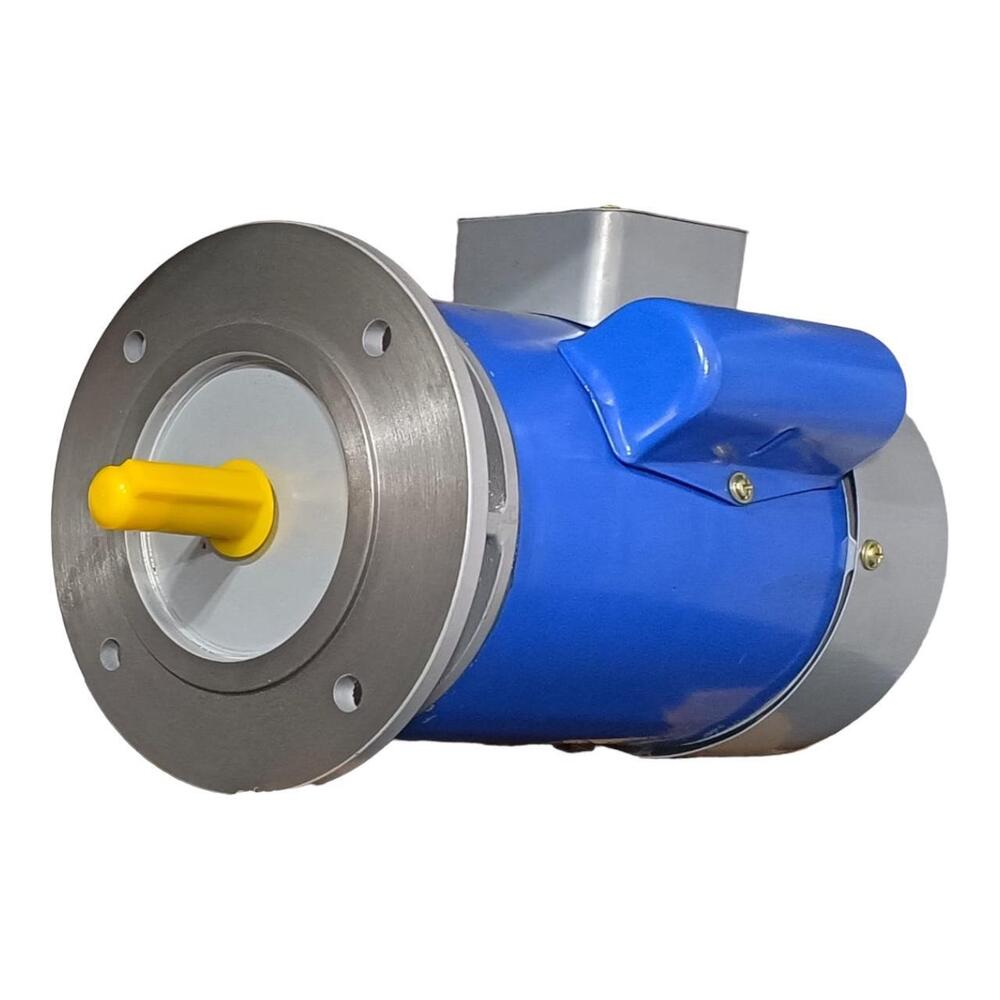

Single Phase Ac Electric Motor

5549 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 750 Watt (W)
Sealed Type Packing seal
Starting Type S1 DUTY
Power Rating 4.7AMP
Rated Frequency 50HZ Hertz (HZ)
Features IS 12615
Bearing Type BALL BEARING 6204 6203 2RS
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Single Phase Ac Electric Motor Price And Quantity

Minimum Order Quantity 1 Piece
Price 5549 INR/Piece
Price Range 3540.00 - 10950.00 INR/Piece

Single Phase Ac Electric Motor Product Specifications

Product Type Induction Motor
Warranty 1 YEARS
Sealed Type Packing seal
Rated Voltage 750 Watt (W)
Power Rating 4.7AMP
Starting Type S1 DUTY
Speed 1440 RPM
Mounting Type B3, B5, B14, B34, B35
Bearing Type BALL BEARING 6204 6203 2RS
Features IS 12615
Rated Frequency 50HZ Hertz (HZ)
Efficacy 71%
Phase Single Phase
Protect Feature Drip-Proof
IP Rating ip44 ip55
Cooling Method TEFC
Current Type AC
Pressure High Pressure
Output Power 1HP Horsepower (HP)
Color SILVER BLUE
Voltage 220V Volt (v)
Noise Level 24 db
Frequency (MHz) 50HZ Hertz (HZ)
Power 4.7 AMP Ampere (amp)
Torque 220% N-m
Poles Number 4 2
Shaft Diameter 19MM Millimeter (mm)
Ambient Temperature 50"C Celsius (oC)

Single Phase Ac Electric Motor Trade Information

FOB Port EX FACTORY
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque Delivery Point (DP)
Supply Ability 25 Piece Per Day
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details BOX
Main Export Market(s) Asia
Main Domestic Market All India
Certifications ISO 9001-2015 CERTIFICATION CE CERTIFICATION

Product Description

Specifications

Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Range:

Range :0.10 H.P. to 5 H.P. (0.075 K.W. to 3.7 K.W.) Frame 63 to 100L in 2 & 4 Pole
Mounting: Foot “ Flange “ Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
