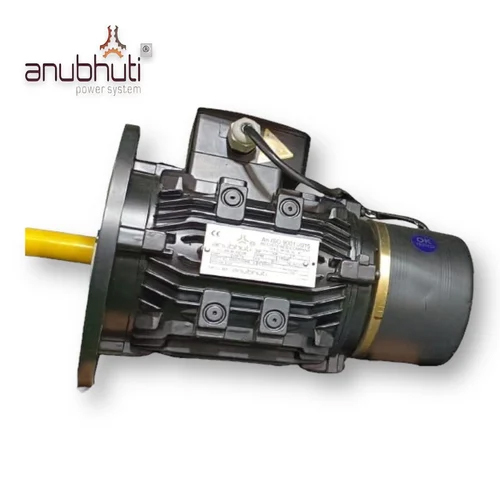

Brake Motor AC

Name: Brake Motor AC
Brand: ANUBHUTI POWER SYSTEM
Price: 8500 INR
Availability: InStock

8500 INR/Unit

Get a Price/Quote

Product Details:

Efficacy High
Rated Frequency 50 Hz
Power Rating 0.75 kW to 15 kW
Poles Number 4
Rated Voltage 415 V
Motor Type AC Induction Motor with Brake
Voltage 415 V
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Brake Motor AC Price And Quantity

Price 8500 INR/Unit
Minimum Order Quantity 1 Unit

Brake Motor AC Product Specifications

Product Type Brake Motor AC
Power Rating 0.75 kW to 15 kW
Shaft Diameter As per IEC standard
Rated Frequency 50 Hz
Efficacy High
Rated Voltage 415 V
Power 0.75 kW to 15 kW
Dimension (L*W*H) As per model specification
Poles Number 4
Pressure Normal atmospheric
Speed 1440 RPM
Horse Power 1 HP to 20 HP
Output Power 1 HP to 20 HP
Ambient Temperature -15C to +40C
Noise Level Low
Voltage 415 V
Color Blue
Motor Type AC Induction Motor with Brake
Protect Feature Totally Enclosed
Starting Type Direct on Line (DOL)
Torque High Starting Torque
Cooling Method Self-cooled (IC411)
Standard IS:325, IEC 60034
Features High starting torque, robust construction, reliable performance, long service life, quick braking action
Mounting Type Foot Mounted
Sealed Type IP55
Current Type AC
IP Rating IP55
Phase Three Phase
Weight Varies by model
Frequency (MHz) 50 Hz
Bearing Type Deep Groove Ball Bearing

Mounting Position Horizontal
Brake Type Electromagnetic AC Brake
Frame Size 71 to 180L
Temperature Rise < 75 K
Insulation Class Class F
Duty Cycle S1 (Continuous Duty)
Service Factor 1.0
Material Cast Iron Body
Application Cranes, Elevators, Hoists, Conveyor Systems, Material Handling

Brake Motor AC Trade Information

Payment Terms Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cheque
Supply Ability 10 Unit Per Month
Delivery Time 7 Days
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Product Description

An AC brake motor combines a conventional AC induction motor with a builtin brake mechanism (often electromagnetic or spring applied) which enables the motor shaft to stop and hold when power is removed (or on command). For instance:

When the motor is powered and runs, the brake is released.
When you remove power (or apply the brake signal), the brake engages, locking the shaft or providing significant braking torque.
This is especially useful in applications where you need quick stopping, controlled holding, or safety in case of power loss.

Engineered for Demanding Material Handling Applications

This brake motor AC is tailored for intensive applications like cranes and conveyors, offering rapid braking and dependable hold even in rigorous operational environments. Its high starting torque, efficient self-cooling system (IC411), and cast iron construction guarantee both resilience and steady performance, making it a trusted choice across various industries.

Superior Protection and Durability

With an IP55 rated totally enclosed body, Class F insulation, and robust cast iron frame, the motor resists dust, moisture, and elevated temperatures up to 75 K rise. The deep groove ball bearing and adherence to IS:325 and IEC 60034 standards further ensure remarkable longevity, reliable service, and minimal downtime.

FAQ's of Brake Motor AC:

Q: How does the electromagnetic brake in this AC brake motor function?

A: The electromagnetic AC brake operates by energizing an electromagnet, which engages the brake and stops the motor shaft quickly. Upon de-energizing, the brake releases, allowing the shaft to rotate. This action offers precise stopping and holding capabilities, making it ideal for applications like cranes and elevators.

Q: What benefits does the cast iron body provide for this brake motor?

A: A cast iron body ensures exceptional mechanical strength, vibration resistance, and effective heat dissipation. This enhances the motor's durability, reliability, and performance stability, even in continuous heavy-duty operations typical in material handling and elevator systems.

Q: Where can this brake motor AC be installed and used?

A: This brake motor is suitable for installation in industrial environments needing precise braking and holding, such as cranes, hoists, elevators, and conveyor systems. It is foot-mounted for horizontal placement and engineered to operate within -15C to +40C ambient temperatures at normal atmospheric pressure.

Q: What process ensures consistent performance during continuous operation?

A: The motor is designed for S1 (continuous duty), featuring a self-cooled system (IC411), insulation Class F, and a totally enclosed IP55 enclosure. These elements collectively maintain the motor's temperature below a 75 K rise, ensuring uninterrupted, reliable performance.

Q: How does the motor's quick braking capability benefit daily operations?

A: The quick braking action minimizes downtime and improves workplace safety by allowing immediate halts in motion. This feature is especially advantageous in lifting and conveying applications, where precise stopping and holding are critical for efficiency and operational control.

Q: What maintenance practices are recommended for optimal longevity?

A: Routine inspection for dust, wear on brake components, and verification of electrical connections are advised. Thanks to its robust construction and IP55 protection, major maintenance is seldom required; however, scheduled lubrication and bearing checks help extend the motor's service life.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Brake Motors' category

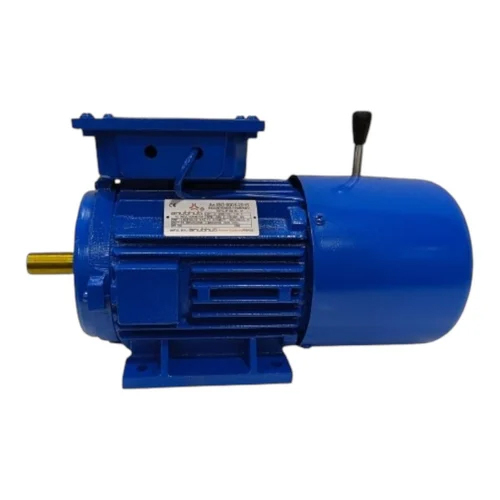

Brake Foot Mounted Motor Price : 12500 INR/Unit Minimum Order Quantity : 1 Phase : Three Phase Power : 1.5 kW Output Power : 2 HP Color : Blue Voltage : 415 V Speed : 1440 RPM Mounting Type : Foot Mounted Cooling Method : Fan Cooled IP Rating : Other, IP55 Product Type : Other, Brake Foot Mounted Motor Rated Frequency : 50 Hz Rated Voltage : 415 V Pressure : Other, Standard Atmospheric Ambient Temperature : 15C to +45C Motor Type : Foot Mounted Induction Motor with Brake Starting Type : Direct On Line (DOL) Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Torque : Up to 12 Nm Sealed Type : Other, Totally Enclosed Weight : 42 kg Bearing Type : Deep Groove Ball Bearing Frequency (MHz) : 50 Hz Efficacy : IE2 High Efficiency Shaft Diameter : 28 mm Poles Number : 4 Dimension (L*W*H) : 380 mm x 220 mm x 250 mm

Send Inquiry

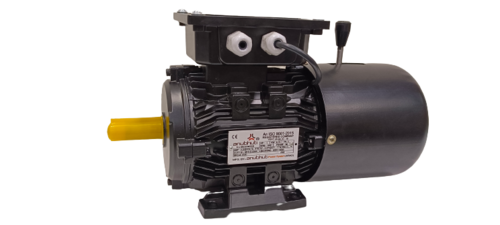

Brake Motor ( AC -DC ) Price : 4250.00 INR/Piece Minimum Order Quantity : 1 Phase : Three Phase Power : 760 Watt (w) Output Power : 1 Horsepower (HP) Color : BLACK, BLUE, Voltage : 220v&415v Volt (v) Speed : 100015003000 RPM Product Type : Induction Motor Rated Frequency : 50 Hertz (HZ) Rated Voltage : 2.1 Ampere (A) Pressure : High Pressure Ambient Temperature : 55 Celsius (oC) Starting Type : Electric Start Protect Feature : DripProof Sealed Type : Packing seal Weight : 13.500 Kilograms (kg) Frequency (MHz) : 5060 Hertz (HZ) Efficacy : IE1 Dimension (L*W*H) : is325 Millimeter (mm)

Send Inquiry

Ac Motor Flange Mounted Price : 10750 INR/Piece Minimum Order Quantity : 1 Phase : Three Phase Power : 5 HP Output Power : 3.7KW Color : Grey Mounting Type : Flange Mounted Cooling Method : Fan Cooled Rated Frequency : 50HZ Rated Voltage : 415V Motor Type : AC Motor Shaft Diameter : Standard Poles Number : 4

Send Inquiry

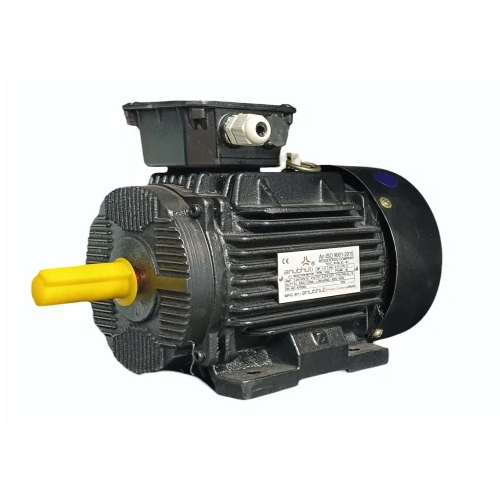

750W CI Electric DC Brake Motor Price : 9200 INR/Piece Minimum Order Quantity : 1 Phase : Three Phase Power : 0.75 kW Output Power : 0.75 kW Color : Grey Finish Voltage : 220V Speed : 1500 RPM Mounting Type : Foot Mounted Cooling Method : Self Ventilated IP Rating : ip44 Bearing Type : Ball Bearing
